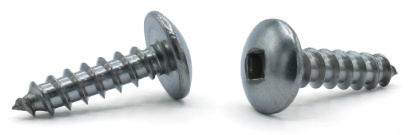

#8 x 2" Type A Self-Tapping Screws / Square / Truss Head / 18-8 Stainless Steel

Product Details

Part Number: 637155 Carton Quantity: 2,000 pcs Carton Weight: 19.60 lbs
#8 x 2" Type A Self-Tapping Screws / Square / Truss Head / 18-8 Stainless Steel Please Note: Item in picture may not reflect size and finish of actual part

Technical Specs

Pricing Information

1-2 Carton Price: $308.26 / Carton of 2,000 pcs ($ 0.15413 Each)
3-4 Carton Price: $290.12 / Carton of 2,000 pcs ($ 0.14506 Each)
5+ Carton Price: $274.00 / Carton of 2,000 pcs ($ 0.13700 Each)

Product Specs

  • Part Number: 637155
  • Product Category: Self-Tapping Screws
  • Type / Style: Type A
  • Size: #8
  • Thread Pitch: 8-15
  • Length: 2"
  • Head Style: Truss Head
  • Drive Style: Square
  • Head Diameter: 0.364 - 0.384
  • Head Height: 0.088 - 0.102
  • Full / Partial Thread: Full
  • Driver Size: 2S
  • Material: 18-8 Stainless Steel
  • Finish: Plain
  • RoHS: Compliant
  • thread_pitch: 8-15
  • head_height: 0.088 - 0.102
  • driver_size: 2S

Part # Cross-Reference

  • 0832AQT188

More About Part Number 637155

These #8 x 2" Self-Tapping Screws feature a Truss Head with a Square Drive and are made from 18-8 Stainless Steel. Self-tapping screws are designed to create mating threads during installation, making them useful for fastening into preformed holes in sheet metal, plastic, and similar materials. Type A self-tapping screws feature coarse threads and a gimlet-style point, making them useful in thin sheet metal, wood, and similar materials. They feature a Plain Finish, meaning no additional surface coating has been applied; this is commonly used where the part will be painted, plated, or used in controlled indoor environments. The Truss Head offers a wide, low-profile rounded design that provides a greater bearing surface than a standard pan head, helping reduce pull-through in thin or soft materials. A Square drive, also known as a Robertson drive, uses a square recess that provides strong torque transfer and reduced cam-out.
