10-32 x 3/8" Type 1 Thread Cutting Screws / Unslotted / Hex Washer Head / Steel / Zinc Green

Product Details

Part Number: 452166 Carton Quantity: 8,000 pcs Carton Weight: 42.14 lbs

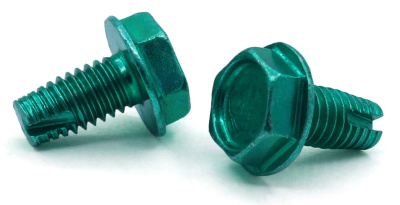

10-32 x 3/8" Type 1 Thread Cutting Screws / Unslotted / Hex Washer Head / Steel / Zinc Green Please Note: Item in picture may not reflect size and finish of actual part

Technical Specs

Pricing Information

1-2 Carton Price: $618.72 / Carton of 8,000 pcs ($ 0.07734 Each)
3-4 Carton Price: $582.32 / Carton of 8,000 pcs ($ 0.07279 Each)
5+ Carton Price: $550.00 / Carton of 8,000 pcs ($ 0.06875 Each)

Product Specs

  • Part Number: 452166
  • Product Category: Thread Cutting Screws
  • Size: 10-32
  • Length: 3/8"
  • Head Style: Hex Washer Head
  • Drive Style: Unslotted
  • Width Across Flats: 5/16"
  • Material: Steel
  • Finish: Zinc Green
  • RoHS: On Request
  • width_across_flats: 5/16"

Part # Cross-Reference

  • 11061WG

More About Part Number 452166

These 10-32 x 3/8" Thread Cutting Screws feature a Hex Washer Head with an Unslotted Drive and are made from Steel. Thread cutting screws create mating threads by cutting into the material during installation, making them useful where a screw must form secure threads in preformed holes. Type 1 thread cutting screws are designed with a single flute for cutting mating threads during installation in preformed holes. They feature a Zinc Green Finish, which is a zinc plating with a green chromate passivation layer that offers improved corrosion resistance and a distinctive green appearance. The Hex Washer Head incorporates a built-in washer flange beneath the head, increasing bearing surface and improving load distribution while remaining compatible with standard hex drivers. An Unslotted head contains no drive recess, making it useful in permanent or tamper-resistant fastening situations.
